Vaccine Production Unit

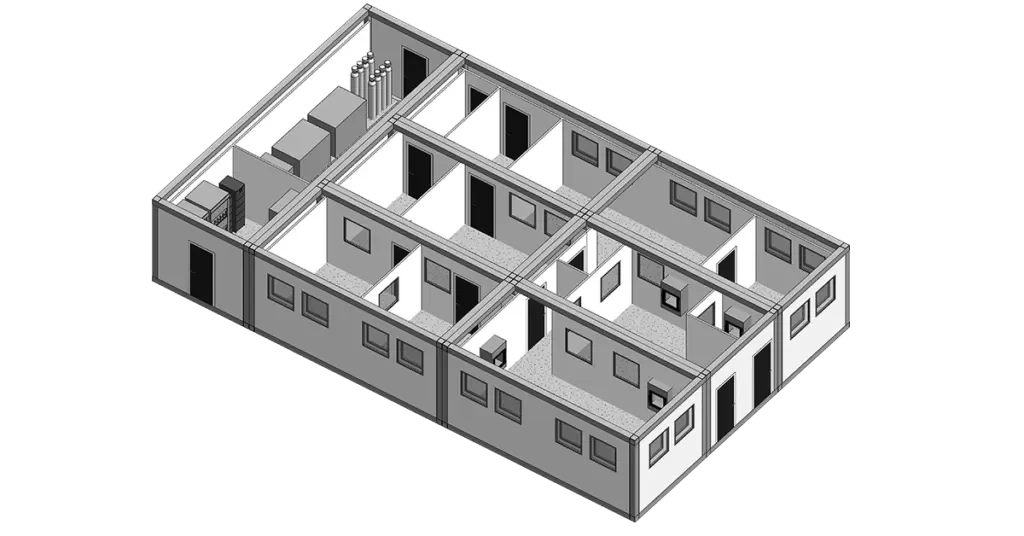

This concept shows a small unit of 167 m2 for the production of vaccines.
This kind of layout can help our customers to deploy rapidly and in any part of the world, ready to produce vaccines in the unit.

vaccine production unit

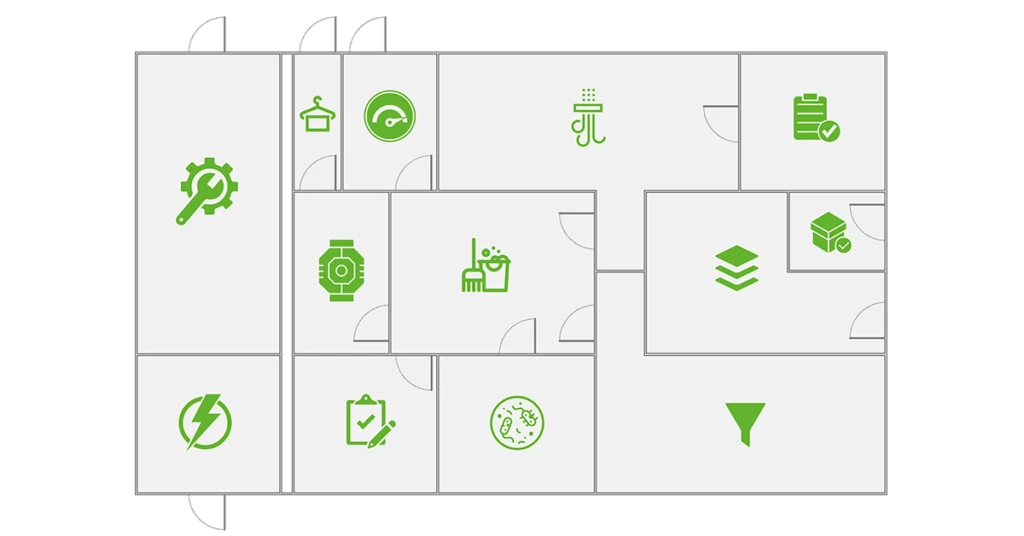

Vaccine production unit plan 2D
  • C-Cube - Icons website_technical Technical Room: 22.6 m2
  • C-Cube - Icons website_electrical Electrical Room: 10,4 m2
  • C-Cube - Icons website_cloackroom Cloakroom: 3.4 m2
  • C-Cube - Icons website_pal d PAL: 8 m2
  • C-Cube - Icons website_ipc (qc analytic) QC Analytics: 10.4 m2
  • C-Cube - Icons website_mal (d) MAL: 6.8 m2
  • C-Cube - Icons website_clean corridor Clean Corridor: 17.1 m2
  • C-Cube - Icons website_innoculum (cell culture) Cell Culture: 11.2 m2
  • C-Cube - Icons website_purrification Purification: 23.7 m2
  • C-Cube - Icons website_clarification Clarification: 23.7 m2
  • C-Cube - Icons website_final bulk (formulation) Formulation & Filling: 10.4 m2
  • C-Cube - Icons website_final storage Final Storage: 10.1 m2
  • C-Cube - Icons website_buffer Buffer / Media Preparation: 16 m2
